PrimEvo Recessed Downlite, M3, 220-240 Vac 50Hz, 2 LED 3W, Environment Temperature 0-25 Degrees Celsius

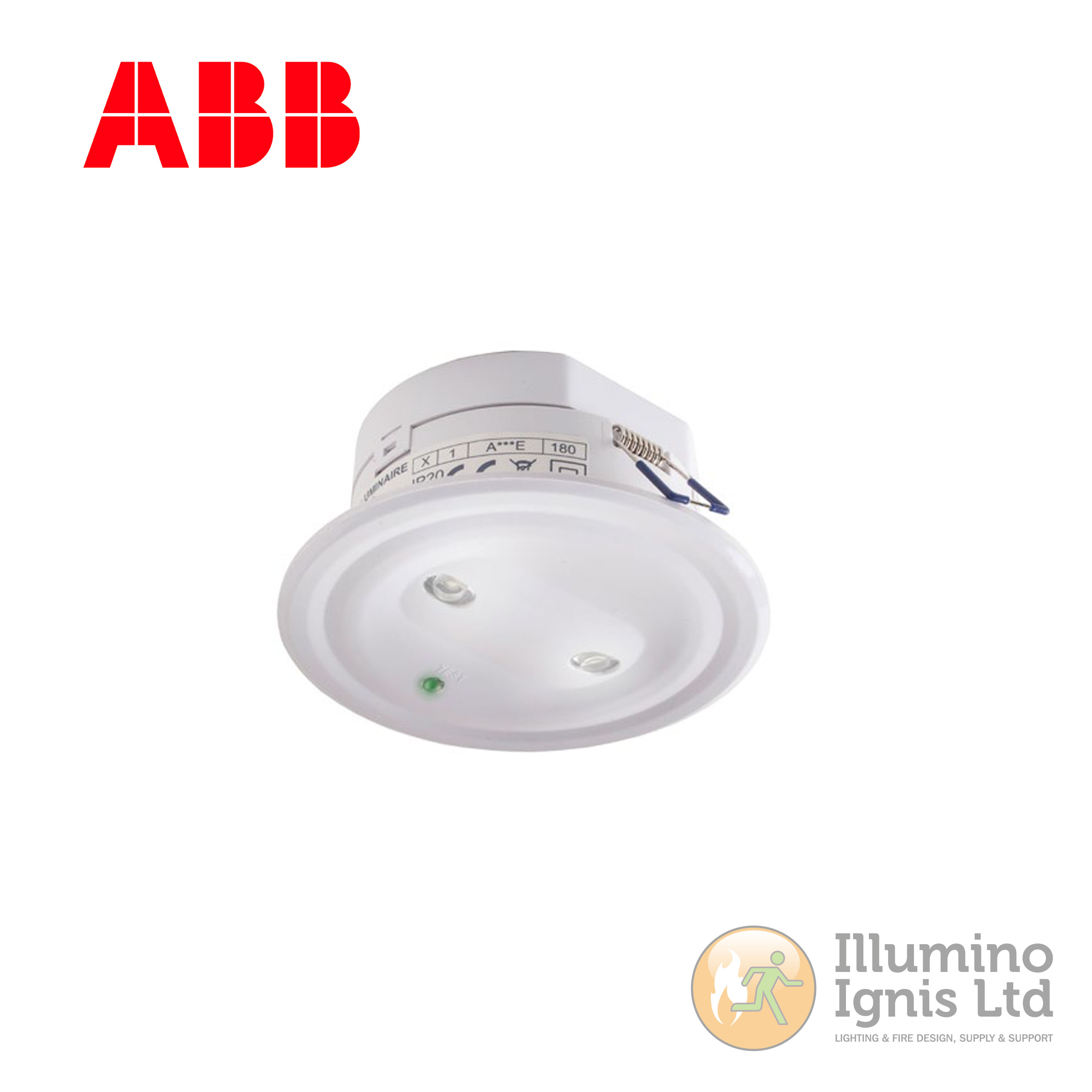

Self Test LED Recessed Downlight
SKU: RS100ST
- Application: Distributor Select
- Function: Escape route lighting
- Rated Voltage (Ur): 220...240 V
- Input Voltage Type: AC
- Power Consumption (@Pcons): 10 V·A4.8 W
- Power Supply Type: Peripheral (Individual Battery)
- Number of Poles: 2
- Number of Lamps: 2
- Number of Lighting Heads: 1
- Color Temperature (@Tcol): 6000 K
- Functional Testing Capability: Test Button
- Wiring Configuration: Continuous circuit/emergency circuitSuitable for through wiring
- Illuminance: 120 lm
- Ballast Type: LED Operating Device Current Controlled
- Connection Type: Screw Clamp
- Lamp Type: LED not exchangeable
- Light Distribution Type: Symmetric
- Marking Type: Sticker
- Mounting Type: Built-in
- Type of Indicator: Single-sided
- Cover Material: Plastic Matt / Satinized
- Housing Material: Plastic
- Communication: Standard
- Housing Color: White
- Battery Chemical Composition: Nickel-Cadmium
- Battery Type: Industrial
- Battery Weight: 117.7 g
- Number of Batteries: 1
- Ambient Temperature: IEC62722-2-1 0...25 °C
- Degree of Protection: IP20
- Protection Class: Isolated (Class II)
- Product Net Width: 130 mm
- Product Net Height: 62 mm
- Product Net Depth / Length: ø125 mm
- Product Net Weight: .81585 lb370 g
- Package Level 1 Units: box 1 piece
- Package Level 1 Gross Weight: 0.417 kg
- UPC: 075114330008
- ETIM 8: EC001957 - Emergency luminaire
- ETIM 9: EC001957 - Emergency luminaire
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B: Business To Business
- CN8: 94054090
- UNSPSC: 39111709
- eClass: V11.0 : 27110305
- IDEA Granular Category Code (IGCC): 3940 >> Emergency light unit
