The Advanced MX-5030 is a full remote control terminal / repeater control panel designed for use with MxPro 5 fire control panels on a standard network.



The remote terminals utilise the same graphical LCD user interface that can be found on the MxPro 5 series fire panels and are based upon the same advanced, flash based, microprocessor technology.



The MxPro 5 panels and remote terminals can communicate over the same 2-core network cable.



They feature an integral network interface incorporating a special screen termination to prevent mains frequency earth-loop currents flowing between network nodes.



The Ad-NeT network operates as a true peer-to-peer system with full cross panel reporting, control and cause-and-effect functionality of up to 2000 zones.



All remote terminals incorporate buzzer mute, view, enable/disable and test facilities with dedicated system and navigation keys for simple user control.



The display information is fully programmable by individual zone or sector and can display any combination of fires, faults, pre-alarms or plant alarms. E.g. can display all information in its own sector, but can only show fire signals from other sectors of a building.

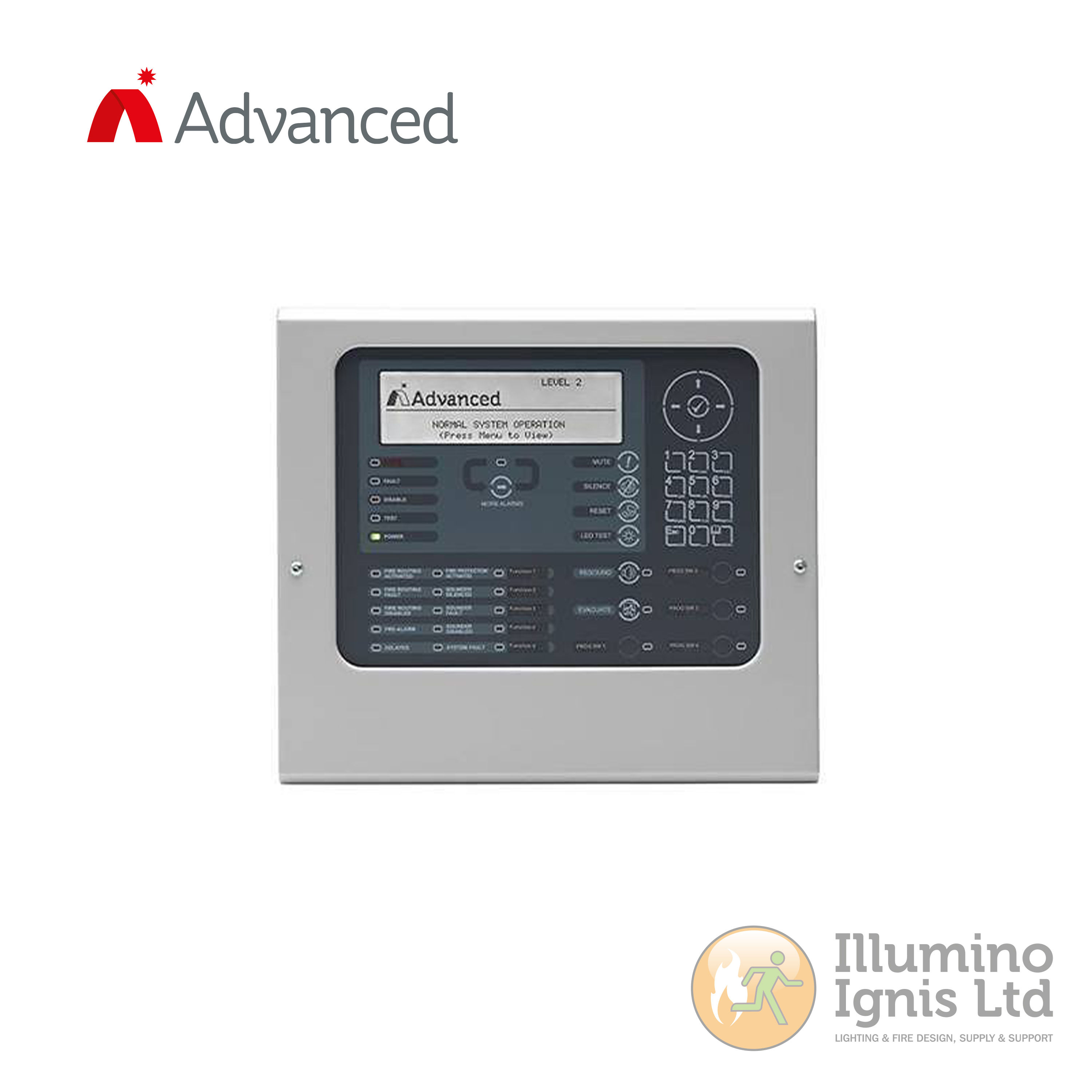

Remote Control Terminal With Standard Network Interface - 24V DC

SKU: MX-5030
    • MxPro 5 Remote Control Terminal - Standard Network
    • Includes built-in standard network card
    • The RCT has additional sector based control keys for Silence, Mute, Resound and Reset, which allows other networked panels to selectively respond to controls as programmed. E.g. on a site with multiple buildings, a user may be allowed to silence and reset fires originating in their own building. Fires originating from other buildings are displayed but cannot be reset.
    • Fully on-site programmable via onboard alphanumeric keypad or PC configuration tools
    • View all information from across the network
    • By using flash memory and an advanced graphical display, the remote terminals can be easily configured to operate in virtually any language, with any character set and allows for the installer’s logo and company details to be displayed on the LCD during normal operation
    • Networked for system display or control
    • Programmable switch input
    • Graphical LCD display
    • Ad-NeT/Ad-Net+ compatible
    • Slide-in labels
    • Small, robust and compact
    • 24V DC operating voltage
    • 3-year warranty
    • Disable/enable options
